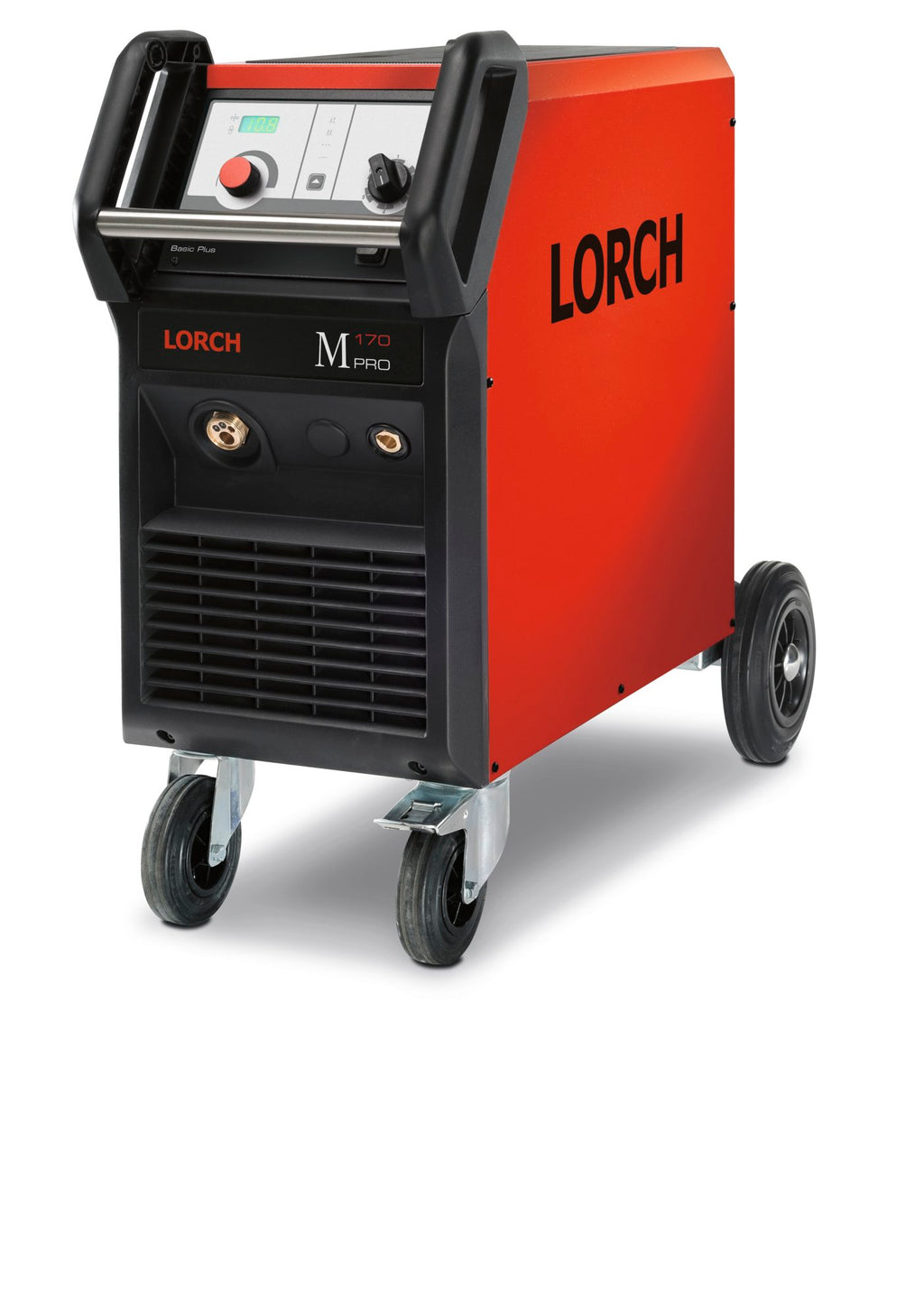

M-Pro 170 BasicPlus Set 15/4

LorchSKU: 218.0170.0

Utförande: Endast maskin
Pris:
Reapris19 227 kr

Frakt beräknas i kassan

Beskrivning

MIG-MAG welding
Welding range 1~ 230 V: [A] 25 - 170
Welding range 2~ 400 V: [A] 25 - 170
Voltage range: [V] 15.3 - 22.5
Weldable Wires Steel: [Ø in mm] 0.6 - 0.8
Weldable wires Stainless steel: [Ø in mm] 0.8 - 0.8
Weldable wires aluminum: [Ø in mm] 1 - 1
Voltage setting
Voltage setting: 6 passi
MIG-MAG duty cycle
Duty cycle 100% (40°c): [A] 70
Duty cycle 60% (40°c): [A] 85
Duty cycle at max. current (40°c): [%] 15
Process-independent data
Open circuit voltage: [V] 14 - 40
Mains 230 V 400 V
Mains voltage 1~ (50/60 Hz): [V] 230
Mains fuse 1~ (50/60 Hz): [A] 16
Positive mains tolerance 1~ (50/60 Hz): [%] 15
Negative mains tolerance 1~ (50/60 Hz): [%] 15
Mains voltage 2~ (50/60 Hz): [V] 400
Mains fuse 2~ (50/60 Hz): [A] 16
Positive mains tolerance 2~ (50/60 Hz): [%] 15
Negative mains tolerance 2~ (50/60 Hz): [%] 15
Mains plug
Mains plug: Schuko / CEE 16
Standards and approvals
Protection class: IP23S
Insulation class: F
Norm/Standard: EN 60974-01
Designation/Certification: CE, S
Cooling type
Cooling type: Gas-cooled
Dimensions length x width x height
Dimensions (LxWxH) [mm] 880 × 400 × 755
Weights
Weight: [kg] 65
