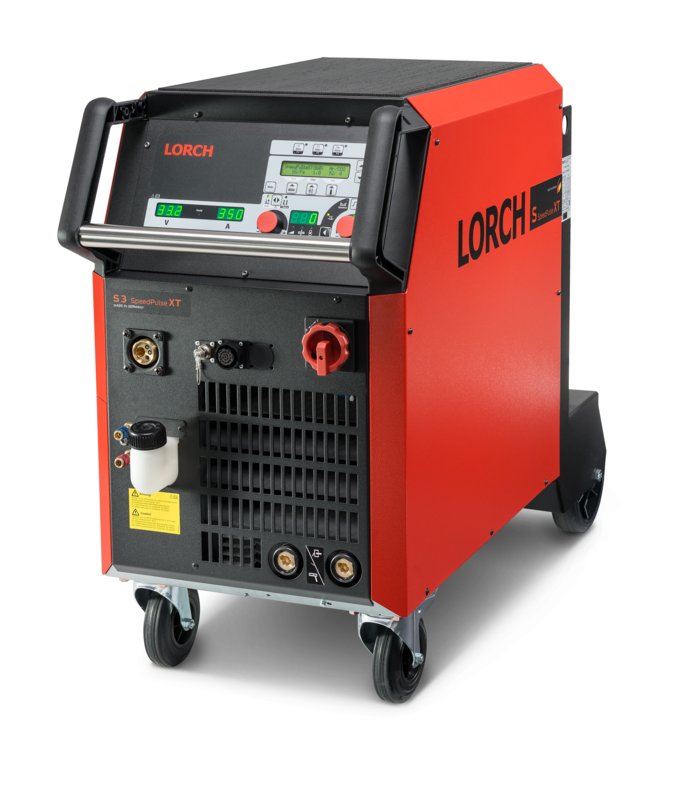

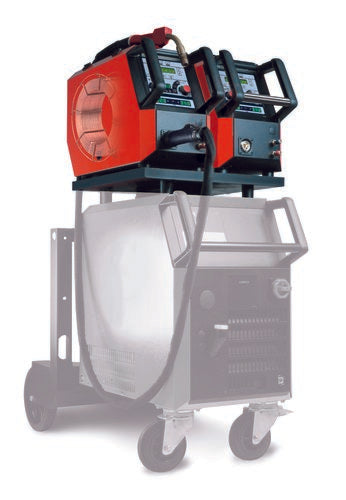

S3 SpeedPulse XT - water-cooled double wire feeder system

LorchSKU: 220.3000.1

Kylning: Luft
Utförande: Kompakt, endast maskin
Pris:
Reapris100 980 kr

Frakt beräknas i kassan

Beskrivning

MIG-MAG welding
Welding range 3~ 400 V: [A] 25 - 320
Voltage range: [V] 15.2 - 30
Weldable Wires Steel: [Ø in mm] 0.6 - 1.2
Weldable wires aluminum: [Ø in mm] 1 - 1.2
Weldable wires CuSi: [Ø in mm] 0.8 - 1.2
Voltage setting
Voltage setting: Continuo
MIG-MAG duty cycle
Duty cycle 100% (40°c): [A] 250
Duty cycle 60% (40°c): [A] 280
Duty cycle at max. current (40°c): [%] 40
Electrode welding
Weldable electrodes: [Ø in mm] 1 - 6
Process-independent data
Open circuit voltage: [V] 79 - 113
Mains 400 V
Mains voltage 3~ (50/60 Hz): [V] 400
Mains fuse 3~ (50/60 Hz): [A] 16
Positive mains tolerance 3~ (50/60 Hz): [%] 15
Negative mains tolerance 3~ (50/60 Hz): [%] 15
Mains plug
Mains plug: CEE 16
Standards and approvals
Protection class: IP23S
Insulation class: F
Norm/Standard: EN 60974-01
Designation/Certification: CE, S
Cooling type
Cooling type: Gas-cooled , Water-cooled
Cooling
Standard cooling capacity (l/min): [kW] 1.06
Tank capacity: [l] 4.3
Dimensions length x width x height
Dimensions (LxWxH) [mm] 1,116 × 463 × 812
Dimensions wire feed case (LxWxH) [mm] 639 × 281 × 498
Weights
Weight: [kg] 92.8
Weight wire feeder case: [kg] 20.2
Weight, water cooling (filled): [kg] 14.7
